Profiling Jolt

The modular prover (crates/jolt-prover) is the primary profiling target. One command proves a named workload and emits two artifacts from the same span stream: a Perfetto-viewable chrome trace for humans, and a machine-queryable summary.json for scripts, agents, and jolt-eval telemetry objectives.

cargo run --release -p jolt-prover --features profiling -- \
    profile --name sha2-chain --format chrome

Workloads and default scales (--scale <log2 trace length> overrides):

--backend selects the prover backend (both subcommands): reference (default) is the naive test oracle — absolute numbers are provisional, attribution is meaningful relatively — while optimized is the performance tier (legacy-parity prover performance), slotting into the same instrumented seams.

Artifacts are grouped by run: each invocation writes into benchmark-runs/{timestamp}_{trace_name}/ (with {trace_name} = modular_{workload}_{scale}, hyphens in the workload mapped to underscores; optimized runs append _optimized, keeping their artifact set next to the reference one), and benchmark-runs/latest_{trace_name} is symlinked to the newest successful run — the stable path every example below reads. All paths are under the current working directory. The directory name carries the run identity, so the files inside use fixed names:

• trace.json — chrome trace. Open in Perfetto or query with trace_processor SQL.
• summary.json — schema-versioned aggregates (see below).

The run also compiles and traces the guest, derives the PCS setup, proves it, and verifies the proof. PCS setup and prove() are timed separately. The verifier is timed once under an explicit host-sized Rayon pool and once under an exactly one-worker pool. The profiling feature enables the system monitor, so CPU/memory counters render as native Perfetto counter tracks directly from the emitted trace — no offline post-processing step.

Benchmark sweeps

The benchmark subcommand sweeps workloads across scales — one profile subprocess per (workload, scale), continuing past failures, with --resume skipping pairs whose latest_ link already exists:

cargo run --release -p jolt-prover --features profiling -- \
    benchmark --min-scale 18 --max-scale 21 --resume
# --benchmarks fibonacci,sha2-chain limits the workload set

Results accumulate in benchmark-runs/modular_timings.csv (per-run CSVs live in the run directories). In addition to prover throughput and proof size, the CSV records setup_time_s, verifier_parallel_time_s, verifier_single_thread_time_s, and the explicit parallel worker count. Existing CSVs using the previous header are migrated in place with empty values for these new fields. Render them with:

python3 scripts/benchmark_summary.py     # per-scale table
python3 scripts/benchmark_summary.py --protocol akita \
    --metric verifier_single_thread_time_s
python3 scripts/plot_benchmarks.py       # speed + proof-size plots
python3 scripts/plot_memory_usage.py     # peak memory per run (from summary.json)

Mind the machine: the reference backend retains ~18 GiB regardless of scale and grows steeply with it — large-scale sweeps on the reference backend are for big-memory hosts; use --backend optimized above small scales.

The span labels are a versioned public schema — the current taxonomy lives in the jolt-profiling crate docs (crates/jolt-profiling/src/taxonomy.rs), the normative source for label names, level policy, and the hot-loop rule.

Querying without the Perfetto UI

summary.json answers the canonical questions with jq alone:

S=benchmark-runs/latest_modular_sha2_chain_22/summary.json

# Total prover wallclock (seconds) and dark time (root time not covered by
# any stage span)
jq '.root | {s: (.wall_time_ns/1e9), dark: .dark_time_fraction}' $S

# Total time across all instances of one span label
jq '.spans."EqPolynomial::evals".total_ns / 1e9' $S

# Top 10 spans by inclusive time
jq '.spans | to_entries | sort_by(-.value.total_ns) | .[:10]
    | map({label: .key, s: (.value.total_ns/1e9)})' $S

# Top 10 spans by self time (inclusive minus same-thread children)
jq '.spans | to_entries | sort_by(-.value.self_ns) | .[:10]
    | map({label: .key, s: (.value.self_ns/1e9)})' $S

# Per-stage wallclock breakdown
jq '.stages | map({label, s: (.wall_time_ns/1e9)})' $S

# Per-stage memory: boundary-RSS delta (retained growth) and windowed
# sample-max (null when the stage closed between monitor samples)
jq '.stages | map({label, rss_delta_gib, peak_memory_gib})' $S

Arbitrary ad-hoc queries go through Perfetto's trace_processor SQL against the trace (the same SQL the Perfetto UI runs, now scriptable). Provision the pinned pip package once:

uv pip install perfetto==0.57.2

from perfetto.trace_processor import TraceProcessor

tp = TraceProcessor(trace="benchmark-runs/latest_modular_sha2_chain_22/trace.json")
q = tp.query("""
    SELECT name, COUNT(*) AS n, SUM(dur)/1e9 AS total_s
    FROM slice GROUP BY name ORDER BY total_s DESC LIMIT 15
""")
for row in q:
    print(row.name, row.n, row.total_s)

Measurement semantics

• Time metrics cover the jolt_prover::prove root span only — guest compilation, tracer execution, and preprocessing are excluded.
• Per-label totals sum inclusive durations across all threads and may exceed wallclock under rayon parallelism.
• Self time subtracts same-thread children only; work on rayon workers attributes to its own labels.
• Two peak-memory numbers, complementary: peak_rss_gib is the process-lifetime getrusage high-water mark (cannot miss short spikes, but includes guest compile/trace); root.peak_memory_gib is the max over monitor samples inside the root span (prove-only, but sampled at ≥ 50 ms).

Overhead and dark-time budgets

The full subscriber stack must stay within 5% of an uninstrumented run, and dark time (root wallclock not covered by any stage span) within 5%. Verified by a manual procedure, not CI (wallclock thresholds on shared runners are flaky gates) — on sha2-chain at scale 2^22, median of 3 runs on the same machine:

# Baseline: no subscriber at all; prove() timed with std::time::Instant
cargo run --release -p jolt-prover --features profiling -- \
    profile --name sha2-chain --format none

# Instrumented: full stack (chrome + summary + monitor)
cargo run --release -p jolt-prover --features profiling -- \
    profile --name sha2-chain --format chrome
jq '.root | {s: (.wall_time_ns/1e9), dark: .dark_time_fraction}' \
    benchmark-runs/latest_modular_sha2_chain_22/summary.json

Budgets: root.wall_time_ns (chrome) ≤ 105% of the --format none Instant measurement, and dark_time_fraction ≤ 0.05.

Memory profiling (allocative)

With the allocative feature, the same profile command additionally captures per-batch heap snapshots and renders the whole memory story as a self-contained page:

cargo run --release -p jolt-prover --features profiling,allocative -- \
    profile --name fibonacci --format chrome
open benchmark-runs/latest_modular_fibonacci_13/memory.html

memory.html is the human view — one time axis carrying the continuous RSS envelope (the monitor's memory_gib counter), the stage spans as labeled bands, and at each snapshot instant a stacked composition column of the live batch kernels, colored by relation family on one shared byte scale, topped with the gray "unattributed" residual up to the envelope (allocator retention + unvisited allocations). Click a column for the snapshot's full-depth icicle; a table view carries every exact byte count.

The machine views: each snapshot persists as exact-bytes folded-stacks text ({run_dir}/{StageLabel}_prepared.folded, root;child BYTES per line), and the per-snapshot totals land in summary.json's heap section (per-root bytes, keyed by snapshot label), so heap attribution is one jq away:

jq '.heap | map_values({gib: (.total_bytes / 1073741824),
                        top: (.roots | to_entries | max_by(.value) | .key)})' \
    benchmark-runs/latest_modular_fibonacci_13/summary.json

One snapshot per driver batch, taken right after every member kernel's prepare, with all tables materialized and nothing bound yet — the stage's retained-memory peak. This is where the multi-GiB naive kernel tables show up. Every SumcheckKernel is MaybeAllocative, so the live members are visited directly, keyed by their concrete kernel type (which names the relation); the proof session rides along, its carries attributed by concrete type name through the per-entry visitors captured at park time. (End-of-stage snapshots were dropped: stage working sets free on exit, so they were near-empty by construction — anything genuinely carried across a boundary, like the 6b→7 precommitted reduction, appears inside the consuming kernel in the next stage's _prepared snapshot. A lingering RSS plateau after a large _prepared graph is allocator retention, not live data. Stages 0 and 8 have no sumcheck batch and therefore no flamegraph — their memory lives inside the commit and joint-opening slot calls; use the counter tracks and the per-stage RSS table there.)

jolt-eval telemetry objectives

Every summary metric is reachable as a string-keyed jolt-eval objective (telemetry:<workload>:<metric>), so optimization agents can target any span without editing jolt-eval; deterministic instruction counts are available through the opt-in iai-callgrind lane (callgrind:<bench-name>:instructions). See jolt-eval/README.md.

cargo run -p jolt-eval --bin measure-objectives -- \
    --objective telemetry:fibonacci:prover_time_s
# Heap attribution as an objective (builds the profile run with allocative;
# exact bytes; the root frame after the snapshot label is verbatim):
cargo run -p jolt-eval --bin measure-objectives -- \
    --objective telemetry:fibonacci:heap:Stage2Batch_prepared

Legacy prover (jolt-prover-legacy)

The instructions below apply to the legacy monolith until it is deleted.

Execution profiling

cargo run --release -p jolt-prover-legacy profile --name sha3 --format chrome

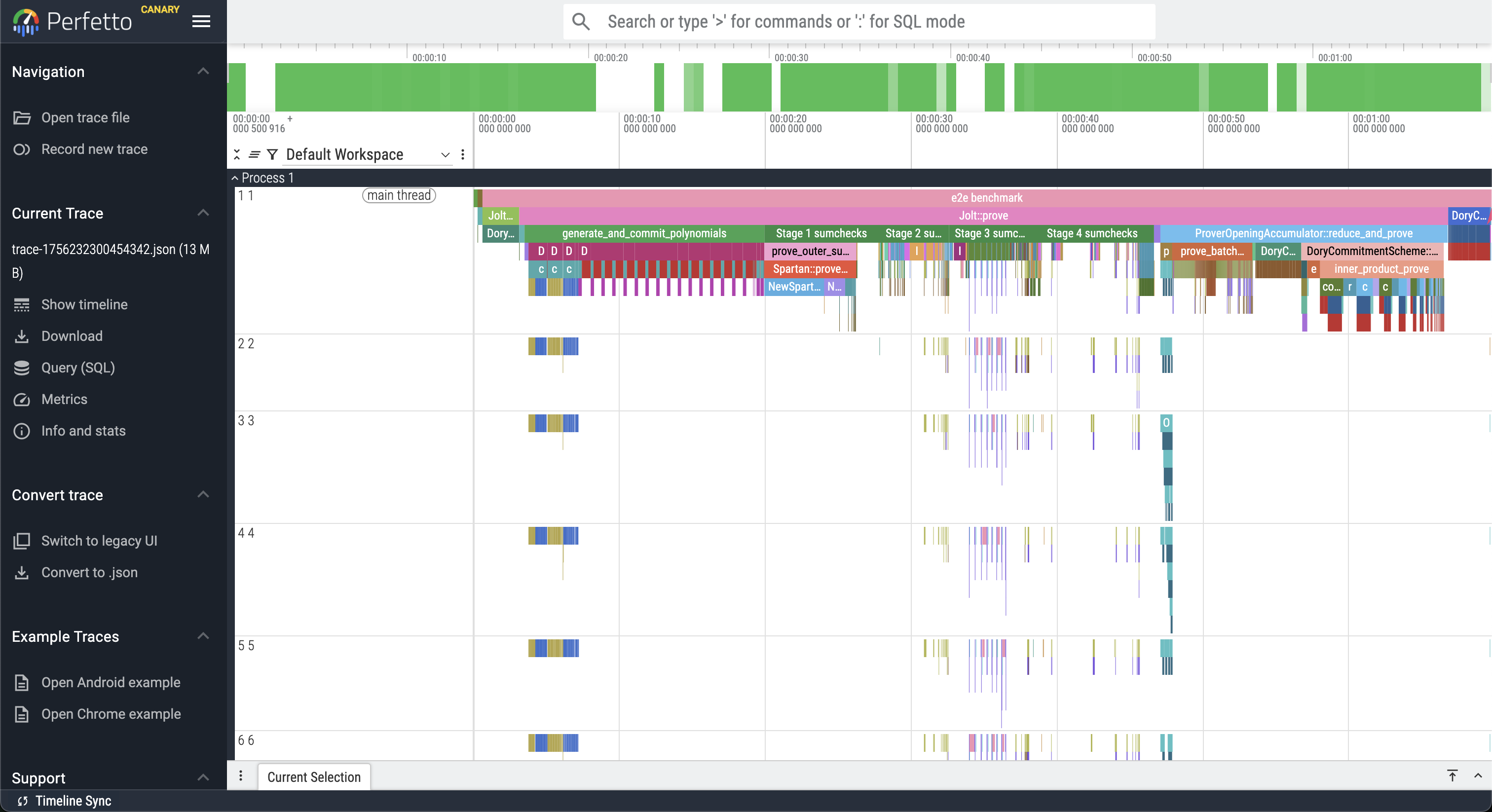

Where --name can be sha2, sha3, sha2-chain, sha3-chain, fibonacci, or btreemap. Traces are written to benchmark-runs/perfetto_traces/{name}_{timestamp}.json and viewable in Perfetto:

System resource monitoring

cargo run --release --features monitor -p jolt-prover-legacy profile --name sha3 --format chrome
python3 scripts/postprocess_trace.py benchmark-runs/perfetto_traces/*.json

The postprocessing step converts the metrics into counter tracks for Perfetto (the legacy pipeline only; the modular pipeline does this at flush time).

Fine-grained CPU profiling with pprof

When tracing is insufficiently detailed, you can enable pprof for fine-grained CPU profiling. While execution tracing shows you the high-level stages and their durations (based on manually instrumented code), pprof automatically samples your entire program at the function level to capture each function call including in dependencies.

cargo run --release --features pprof -p jolt-prover-legacy profile --name sha3 --format chrome

This will generate multiple .pb profile files in benchmark-runs/pprof/, one for each major stage. To view in your browser:

go tool pprof -http=:8080 target/release/jolt-prover-legacy benchmark-runs/pprof/sha3_prove.pb

Customize the sampling frequency with PPROF_FREQ (default: 100 Hz):

PPROF_FREQ=1000 cargo run --release --features pprof -p jolt-prover-legacy profile --name sha3 --format chrome

Memory profiling

The legacy prover generates allocative flamegraphs at the start and end of stages 2–7 (see crates/jolt-prover-legacy/src/zkvm/prover.rs):

RUST_LOG=debug cargo run --release --features allocative -p jolt-prover-legacy profile --name sha3 --format chrome

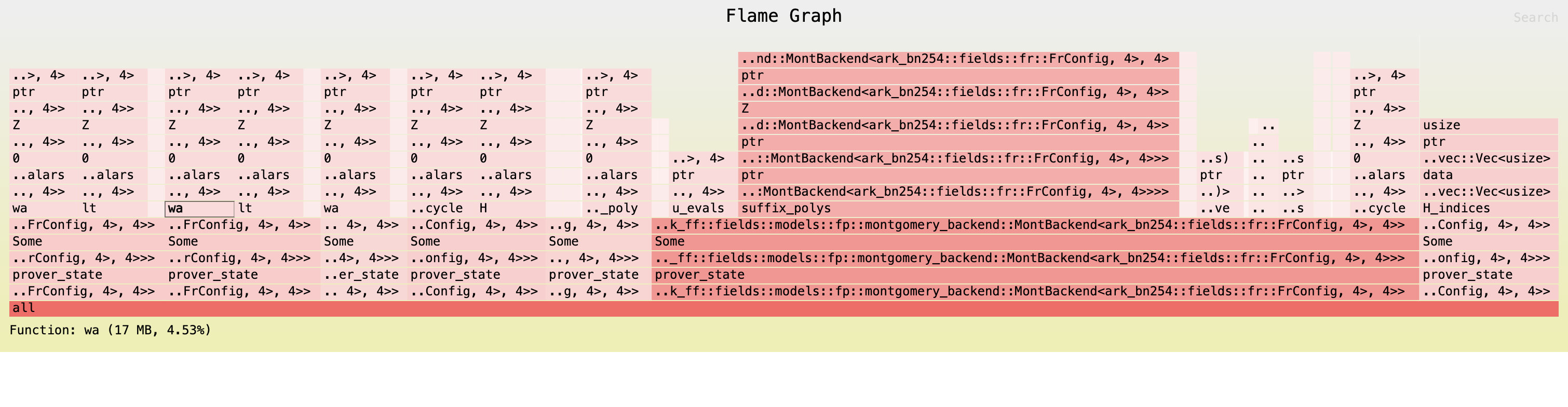

This logs memory usage to the command line and outputs SVG files, e.g. stage3_start_flamechart.svg:
